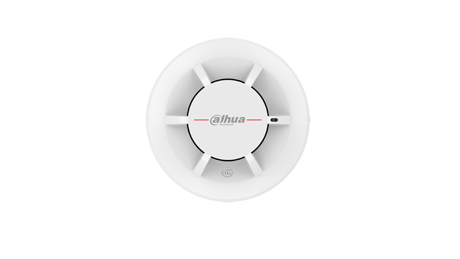

Conventional Smoke Detector DHI-HY-C131
DHI-HY-C131 Conventional Smoke Detector is a mated product of the Conventional Fire Alarm Control Panel. Integrated with two-wire and polarity-free technology, this detector analyzes ambient smoke concentration through a dual photoelectric smoke sensing chamber.
ul>
Working Voltage | DC9V-DC28V |
Current | Standby current: ≤ 350μA Alarm current: ≤ 100mA |
Alarm Mode | Visual and audible alarm |
Coverage Area | H ≤ 4 m (13.12 ft): 150 m2 4 m (13.12 ft) ≤ H ≤ 12 m(39.37 ft): 80 m2 |
Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
Operating Humidity | ≤ 95% RH (no condensation) |
Dimensions (with base) | 104 mm × 103.6 mm × 46 mm (4.09" × 4.08"× 1.81") |
Weight (with base) | 122 g (0.27 lb) |
Installation | Ceiling Mount |
