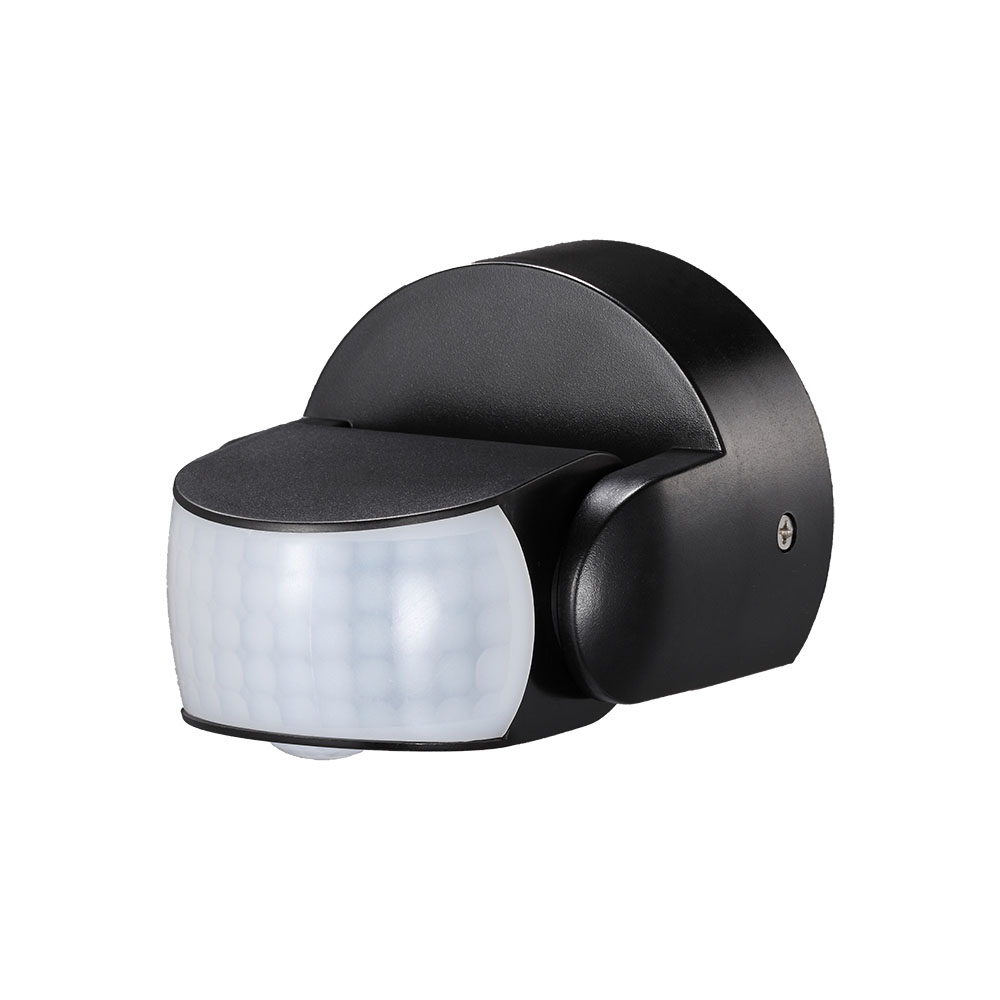

Infrared motion sensor with integrated circuit can detect heat signatures
Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
High quality receptors for instant functioning
Effective system for energy saving and safety
Compatible with V-TAC models
|
Packaging
|
|
|---|---|
| Length Box mm | 82 |
| Width Box mm | 72 |
| Height Box mm | 82 |
|
Electricity Specifications
|
|
| Rated Load | Max 600W LED |
|
General specifications
|
|
| Dimensions | 76x92x62.5mm |
| Warranty | 2 Years |
| Body Color | Black |
| IP Rating | IP65 |
|
Led Lighting
|
|
| VT-Model | VT-8093 |
| Body Material | PC |
| Input Power | AC:200-240V, 50Hz |
| Installation Type | Surfaced |
| Sensor Type | Infrared |
| Detection Distance | 12m Max(<24°C) |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 180°/360° |
| Time Delay | Min. 10sec±3sec, Max. 15min±2min |
